Concept Drawing for a "Camera on a Stick" USB based 3Mpixel imaging product targeting cell phone market.

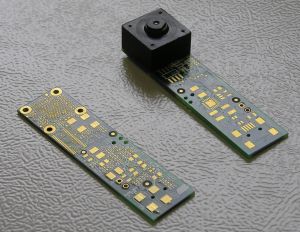

PCB Implementation with Lens Assembly

Concept Drawing

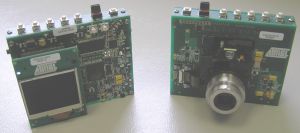

6 Mpixel Evaluation Camera for AT76C114. Camera included flash card support, wireless support, CCD/CMOS and video/audio decode inputs, LCD, RGB, DVI, and HDMI outputs.

Test PCB for AT76C114 Processor

Test PCB for AT76C850 Processor

Test Board for AT76C115 Processor

5Mpixel CMOS imager card with and without Lens Assembly
