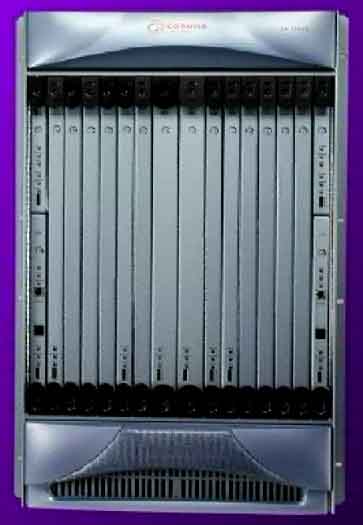

Front View

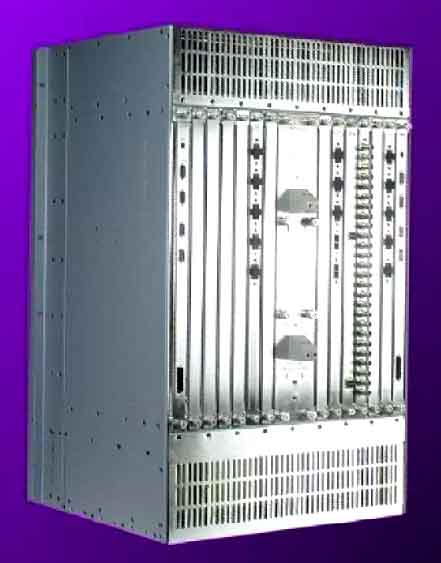

Rear View
SER 12000
Corona SER 12000 supports tens of thousands of simultaneous subscribers in a single chassis, through a broad range of high-density access and trunk interfaces. A full mesh, non-blocking 256 Gbps switch fabric makes scalable performance from T3 to OC-192 possible.
The following interfaces and protocols are supported:
Interfaces: 10/100 Ethernet, Gigabit Ethernet, T3, OC3,
OC12, OC48, OC192
Layer 2 Protocols: ATM, Frame Relay, PPPoE, PPPoA, L2TP, POS
Layer 3 and Above Protocols: RIP, OSPF, IS-IS, BGP, PIM, SNMP, LDAP, COPS, RSVP
Security Protocols: IPSec, SSL, IKE, RADIUS
Services: Internet Access, Firewall, Private Address Management (NAT, DHCP), IP
Traffic Management, Layer 2 and Layer 3 VPNs, Virtual Routers, Diffserv-based
QoS, MPLS, Traffic Engineering
Specifications
|
General Description |
16-slot mid-plane chassis; front-loading Service, Trunk, Switch Fabrics, Network Timing and System Controller Modules; rear-loading Physical Interface Cards |
|
Fault Tolerance |
System Controller Redundancy, Network Timing Redundancy, Switch Fabric Redundancy, Power & Blower Redundancy |
|
Physical Dimensions |
Height: 33", Width: 19", Depth: 20", Weight: 250 lbs., Up to 2 SER 12000 Chassis per 7' rack, Front, center, or rear mounting options for 19" & 23" wide equipment racks |
|
Power Options |
-48Vdc nominal, or 100-230Vac nominal |
|
Environmental |
Operating temperature: 32 to 104 degrees F, 0 to 40 degrees C, Altitude: Up to 10,000 feet, Relative Humidity: 5 to 90% noncondensing |
|
Safety Approvals |
FCC Class B, UL1950, CSA |
|
Agency Approvals |
NEBS Level 3, GR 63, GR 1089 |
|
Routing Protocols |
BGP4, OSPF v2, RIP v2, IS-IS |
|
Tunneling Protocols |
MPLS, RSVP-TE, LDP, CR-LDP, MPLS/BGP VPNs, GRE |
|
Layer 2 |
PPP, PPPoE, PPPoA |
|
QoS: |
WFQ and RED, DiffServ and TOS, Per flow QoS, Layer 3-7 application aware |
|
Management Interfaces |
CLI, SNMP, Corona ISM |
|
Front View |
Rear View |
|
|
